2) Traditional Operations (19) 1) Turning One of the most common and versatile machining operations — fundamental in any CNC or manual workshop.
What it does: On a lathe, the workpiece rotates while the cutting tool moves linearly to remove material from its outer or inner surface. Widely used for rotational parts; simple to program and highly productive for circular geometries; less suitable for complex non-rotational shapes.Applications: Shafts, bushings, rollers, circular housings, pistons, sleeves.Pros: Stable, productive, accurate on rotational features; good chip control options.Cons: Limited to cylindrical geometry; complex features require multiple setups or live tooling. AI Assist: Key signals: vibration (X/Y/Z), spindle current, temperature, acoustic emission.How it works: edge ML model classifies wear state and triggers adaptive overrides.Typical results: +15–25% tool life, −10% downtime, smoother Ra.
2) Boring Precision enlargement and truing of an existing hole for accuracy and surface finish.
What it does: Corrects diameter, roundness, and alignment of pre-drilled holes; can achieve tight tolerances before reaming/honing.Applications: Bearing seats, gearbox housings, engine blocks, hydraulic bodies.Pros: Excellent cylindricity and concentricity; adjustable heads allow fine control.Cons: Slower than drilling; requires rigid fixturing and balanced bars to avoid chatter. AI Assist: Signals: vibration spectrum, spindle current, temperature.Actions: adaptive feed, boring head offset alert, temperature compensation.Typical results: fewer scrap bores, tighter IT grade, improved roundness.
3) Drilling The fastest way to create cylindrical holes; often followed by boring/reaming.
What it does: Produces through or blind holes with twist drills; specialized drills for spot, pilot, step, and deep holes.Applications: Bolt patterns, manifolds, fixtures, general fabrication.Pros: High MRR, standardized tooling, easy programming.Cons: Position/size limited by tool flex; chip evacuation critical in deep holes. AI Assist: Signals: spindle current ripple, axial vibration, coolant pressure.Actions: dynamic pecking, feed override, retract-on-alarms.Typical results: fewer broken drills, improved hole quality, lower cycle time variability.
4) Flow Drilling | Friction Drilling Chipless hole forming process that uses frictional heat to plastically deform material and create a reinforced bushing.
What it does: In flow drilling (also known as friction drilling), a conical rotating tool generates frictional heat to soften and plastically deform the material instead of cutting chips. The displaced material forms a bushing or collar that increases thread engagement in thin-walled sections. (Source: Flowdrill® / Wikipedia – Friction Drilling) Applications: Thin-walled tubes, sheet metal structures, and lightweight assemblies in automotive, aerospace, energy, and furniture industries. Ideal for creating strong threaded joints in steel, stainless steel, aluminum, brass, and copper alloys without inserts or welding.Pros: Creates reinforced collars; chipless (no waste); short cycle times; low tool wear; can be automated in CNC cells; ideal for lightweight designs.Cons: Limited to thin-walled parts (usually <4 mm); high frictional heat requires coolant control; unsuitable for brittle materials; may need finishing before threading. AI Assist: Signals: spindle torque, thermal sensors, feed resistance.Actions: adaptive feed reduction, real-time speed adjustment, pre-cooling recommendations.Typical results: longer tool life, stable bushing geometry, consistent hole quality.
Read the dedicated article →
5) Reaming Finishing operation to achieve tight diameter and smooth surface in holes.
What it does: Removes a small allowance to deliver close IT grade and improved Ra inside holes.Applications: Bearing/locator bores, alignment features, hydraulic ports.Pros: Excellent roundness/finish; fast and repeatable.Cons: Requires accurate pre-hole; sensitive to lubrication/chip control. AI Assist: Signals: spindle current, vibration, coolant flow/pressure.Actions: feed/coolant optimization, stop-on-taper detection.Typical results: tighter size, smoother Ra, fewer tool marks.
6) Tapping & Thread Turning Creating internal/external threads by tapping, thread milling, or single-point turning.
What it does: Forms threads with rigid tapping or turn/mill strategies; controls pitch, flank angle, and fit.Applications: Fasteners, covers, manifolds, shafts.Pros: Fast for standard sizes; good repeatability.Cons: Tap breakage risk; chip evacuation critical in blind holes; burrs on thread starts. AI Assist: Signals: spindle/axis loads, torque peaks, position error.Actions: sync tuning, feed override, early tool-change alert.Typical results: fewer tap failures, better thread quality, less downtime.
7) Milling — Face, Peripheral, Slot Versatile removal for flats, steps, pockets, and contours in 2.5D/3D parts.
What it does: Rotating multi-tooth cutter removes material with controlled engagement (ae/ap); slotting, side, and face operations.Applications: Housings, molds, fixtures, prismatic parts.Pros: High MRR, many tool choices, adaptable strategies.Cons: Chatter risk with long overhangs; heat in difficult alloys. AI Assist: Signals: vibration spectrogram, spindle/axis loads.Actions: adaptive feed, step-over tweaks, CAM hinting for next run.Typical results: improved tool life, fewer marks, shorter cycle time.
8) 5-Axis Simultaneous Milling Complex freeform surfaces and deep features with fewer setups.
What it does: Orients tool normal to surface, keeps constant engagement, reaches hard angles without additional fixtures.Applications: Aerospace blisks, molds, medical implants, turbines.Pros: Superior access, better finish, reduced tooling/fixtures.Cons: Requires calibration and precise postprocessing; collision risk without simulation. AI Assist: Signals: axis loads, vibration, model-based digital twin.Actions: adaptive orientation, feed ceiling, CAM feedback.Typical results: less rework, stable finish, higher confidence on first-off.
9) Turn–Mill (Mill–Turn) Combines turning and milling on one setup to reduce handling and stack-up errors.
What it does: Main/sub spindles and live tools machine rotational and prismatic features in one machine.Applications: Complex shafts, fluid connectors, medical/valve parts.Pros: Fewer setups, better accuracy, shorter lead time.Cons: Programming complexity; tool reach/rigidity constraints. AI Assist: Signals: spindle/axis loads, queue timing, vibration.Actions: auto sequencing hints, safe feed caps, tool-change timing.Typical results: smoother cycle, fewer collisions, improved OEE.
10) Planing / Shaping Legacy but effective for long flat surfaces and keyways.
What it does: Reciprocating tool or worktable generates flat faces and simple slots.Applications: Long beds, guideways, large plates, keyways.Pros: Simple tooling, long reach, good straightness.Cons: Lower productivity vs. milling; intermittent cutting forces. AI Assist: Signals: vibration at stroke ends, motor current.Actions: speed ramp profiling, tool-change alert.Typical results: fewer chatter marks, steadier finish.
11) Broaching Profiles created with a multi-tooth tool of increasing height in a single pass.
What it does: Produces keyways, splines, and special profiles quickly and accurately.Applications: Gears, hubs, aerospace profiles.Pros: Very fast, consistent; minimal operator input.Cons: Dedicated tooling; limited flexibility; high tool cost. AI Assist: Signals: thrust load, temperature, acoustic emission.Actions: lube/coolant check, maintenance scheduling.Typical results: longer tool life, fewer dimensional rejects.
12) Grinding Abrasive removal for tight tolerances and fine surface finish on hard materials.
What it does: Uses bonded abrasives to remove microns per pass, delivering flatness and low Ra.Applications: Tooling, gauge blocks, hardened steels, carbide.Pros: Excellent accuracy and finish; controlled removal.Cons: Burn risk; wheel loading/dressing needed; slower MRR. AI Assist: Signals: spindle power, AE sensor, temperature, spark-out time.Actions: infeed/coolant optimization, auto-dress triggers.Typical results: burn-free finish, stable Ra, extended wheel life.
13) Lapping Ultra-fine finishing with abrasive slurry between lap and workpiece.
What it does: Achieves sub-micron flatness and very low Ra by controlled abrasion.Applications: Seals, optics, precision valves, metrology surfaces.Pros: Exceptional flatness and finish.Cons: Slow; consumables and cleanliness sensitive. AI Assist: Signals: table torque, track pressure, slurry flow.Actions: dwell map adjustments, slurry dosing, pad maintenance alerts.Typical results: consistent flatness, reduced rework, predictable cycle time.
14) Honing Abrasive finishing process for cylindrical bores using rotating abrasive stones. Produces precise dimensions and crosshatch surface pattern.
What it does: Removes minimal material from cylinder bores to achieve precise diameter, roundness, and surface finish with crosshatch pattern.Applications: Engine cylinders, hydraulic cylinders, bearing bores, gun barrels, precision tubes.Pros: Excellent surface finish (Ra 0.1–0.4 µm), precise diameter control (±0.002mm), crosshatch pattern retains lubrication.Cons: Limited to cylindrical bores, requires pre-machined hole, slower than grinding, specialized equipment.Materials: Cast iron, steel, aluminum, bronze, hardened steels.Typical tolerance: ±0.002–0.005mm (diameter)Surface finish: Ra 0.1–0.4 µm Critical for: Automotive engine cylinders (piston ring sealing), hydraulic cylinders (seal performance), precision bearing bores.
15) Superfinishing / Microfinishing Ultra-precision abrasive finishing for flat and curved surfaces. Achieves mirror-like finish with minimal material removal.
What it does: Removes micro-peaks from ground or honed surfaces using fine abrasive stones with oscillating motion.Applications: Bearing races, roller surfaces, sealing surfaces, optical components, precision gauges.Pros: Ultra-smooth finish (Ra 0.05–0.2 µm), improved wear resistance, reduced friction, enhanced fatigue life.Cons: Very slow process, requires pre-finished surface, specialized equipment, high cost.Materials: Hardened steels, ceramics, carbides, bearing steels.Typical tolerance: ±0.001mmSurface finish: Ra 0.05–0.2 µm Critical for: High-precision bearings (extended life), sealing surfaces (leak prevention), optical components (clarity).
16) Deep-Hole / Gun Drilling High L/D holes with internal coolant and chip evacuation through the tool.
What it does: Uses single-lip or BTA systems to drill deep, straight holes with controlled guidance and pressure.Applications: Mold cooling channels, rifle barrels, hydraulic cylinders.Pros: Excellent straightness, reliable chip removal.Cons: Specialized tooling/fixturing; setup sensitive. AI Assist: Signals: coolant pressure/flow, spindle current, vibration.Actions: adaptive peck, pressure setpoint control, retract protocol.Typical results: fewer tool failures, straighter holes, stable cycle time.
17) Gear Hobbing / Shaping Generates gear teeth by continuous (hobbing) or reciprocating (shaping) methods.
What it does: Indexes tooth form via cutter kinematics; accurate gear geometry before finishing.Applications: Transmissions, robotics, industrial drives.Pros: Productive for spur/helical; high accuracy with correct setup.Cons: Tooling specific to module/pressure angle; burrs may need post-ops. AI Assist: Signals: spindle/axis loads, vibration, runout.Actions: feed/index correction hints, maintenance alerts.Typical results: stable tooth quality, fewer rejects, predictable throughput.
18) Sawing / Cutting Material separation using band saws, circular saws, or abrasive cut-off wheels. First operation for stock preparation.
What it does: Cuts raw stock (bars, tubes, plates, profiles) to required length for subsequent machining operations.Applications: Stock preparation, blank cutting, material separation in all industries.Pros: Fast, economical, handles large stock, minimal skill required, versatile (all materials).Cons: Material waste (kerf), rough surface finish, may require facing/deburring, limited precision.Types: Band sawing (continuous blade), circular sawing (rotating disc), abrasive cutting (cut-off wheel).Typical tolerance: ±0.5–2mm (length) Note: Usually the first operation in any machining workflow. Modern CNC band saws can achieve ±0.1mm accuracy with automatic feeding.
19) 5-Axis (recap, complex parts) Efficient stock preparation and cutoff prior to machining operations.
What it does: Cuts raw stock to length with band/circular saws; sets up billets and blanks.Applications: Prepping bars, profiles, plates.Pros: Fast, economical, minimal skill requirement.Cons: Kerf/waste; surface may need facing before precision ops. AI Assist: Signals: motor load, vibration, cut time.Actions: feed override, blade-change scheduling.Typical results: straighter cuts, fewer blade breaks, better upstream efficiency.
2.5) Post-Processing & Finishing Services (3) Essential secondary operations that enhance mechanical properties, surface quality, and corrosion resistance of machined parts.
20) Heat Treatment Controlled heating and cooling cycles to modify material properties: hardness, strength, ductility, and stress relief.
What it does: Alters microstructure through thermal cycles (hardening, tempering, annealing, stress relief, case hardening).Applications: Tool steels, gears, shafts, springs, aerospace components requiring specific hardness.Pros: Improves wear resistance, strength, and fatigue life; removes residual stresses.Cons: Can cause distortion; requires precise temperature control; additional cost and lead time.Common processes: Hardening (HRC 55-65), Tempering, Annealing, Carburizing, Nitriding.Materials: Carbon steels, tool steels, stainless steels, titanium alloys. Note: Heat treatment is often required for aerospace, automotive, and nuclear industry components to meet stringent mechanical property specifications.
21) Surface Finishing (Plating & Coating) Protective and decorative surface treatments: electroplating, powder coating, anodizing, and polishing to enhance corrosion resistance and aesthetics.
What it does: Applies thin layers of metal, polymer, or oxide to improve corrosion resistance, wear resistance, and appearance.Applications: Aerospace parts, medical devices, automotive components, consumer products.Pros: Corrosion protection, improved aesthetics, wear resistance, electrical conductivity (or insulation).Cons: Additional cost, potential for coating defects, thickness control required.Common finishes: Zinc Plating: Corrosion protection for steelChrome Plating: Hard, wear-resistant surfaceNickel Plating: Corrosion + wear resistanceAnodizing: Aluminum oxide layer (Type II, Type III)Powder Coating: Durable polymer finishPassivation: Stainless steel corrosion resistanceBlack Oxide: Mild corrosion protection, aesthetic
Popular for aerospace: Anodizing (aluminum), Passivation (stainless), Cadmium plating (corrosion).Popular for automotive: Zinc plating, Powder coating, E-coating.
22) Deburring Removal of sharp edges, burrs, and surface imperfections left after machining operations.
What it does: Smooths edges and removes burrs using manual, mechanical, or thermal methods.Applications: All machined parts, especially those with tight tolerances or safety requirements.Pros: Improves safety (no sharp edges), part quality, and assembly fit.Cons: Labor-intensive (manual), can affect dimensional accuracy if not controlled.Methods: Manual Deburring: Files, scrapers, abrasive padsVibratory Finishing: Mass finishing in vibratory bowlTumbling: Barrel tumbling with mediaThermal Deburring: Controlled explosion burns off burrsElectrochemical Deburring: ECM-based burr removal
23) Electropolishing Electrochemical process that removes material from metal surface to create ultra-smooth, bright finish. Opposite of electroplating.
What it does: Anodic dissolution removes micro-peaks and surface imperfections, leaving smooth, passive, corrosion-resistant surface.Applications: Medical implants, surgical instruments, pharmaceutical equipment, food processing equipment, aerospace components.Pros: Ultra-smooth finish (Ra 0.1–0.4 µm), removes burrs, enhances corrosion resistance, improves cleanability, no mechanical stress.Cons: Removes material (0.005–0.05mm), dimensional changes, requires conductive materials, chemical handling, masking complexity.Materials: Stainless steel, titanium, aluminum, copper, nickel alloys, cobalt-chrome.Material removal: 0.005–0.05mm per surfaceSurface finish: Ra 0.1–0.4 µm (mirror-like) Critical for: Medical devices (biocompatibility, cleanability), pharmaceutical equipment (FDA compliance), food processing (hygiene).
Critical for: Hydraulic components (no contamination), medical devices (biocompatibility), aerospace (fatigue resistance).
3) Advanced / Non-Conventional Processes (7) 24) Wire-EDM Electrical discharges erode conductive material with no cutting forces.
What it does: Cuts precise 2D/3D profiles via a moving wire electrode; excellent for hard materials.Applications: Dies, punches, extrusion profiles, delicate features.Pros: Superb accuracy, fine kerf, minimal burrs.Cons: Slower than milling; only conductive materials; recast layer management. AI Assist: Signals: spark gap voltage/current, break events, wire tension.Actions: pulse width/frequency tuning, tension control.Typical results: faster cutting, fewer wire breaks, predictable surface.
25) Sinker EDM (Die-Sinking / Ram EDM) Electrical discharge machining using shaped electrode to create 3D cavities. Ideal for complex mold and die cavities.
What it does: Erodes material using shaped copper or graphite electrode that mirrors desired cavity shape. No cutting forces.Applications: Injection molds, forging dies, extrusion dies, complex 3D cavities, blind holes with intricate shapes.Pros: Complex 3D shapes, hardened materials (HRC 60+), no mechanical stress, excellent surface finish, sharp internal corners.Cons: Slow process, electrode wear, requires conductive materials, electrode fabrication cost, dielectric fluid management.Materials: Tool steels, hardened steels, carbides, titanium, Inconel (any conductive material).Typical tolerance: ±0.005–0.02mmSurface finish: Ra 0.4–3.2 µm (depends on finish settings) Note: Different from Wire-EDM (2D profiles). Sinker EDM creates 3D cavities using shaped electrodes. Essential for mold and die making industry.
26) ECM (Electrochemical Machining) Anodic dissolution using shaped cathode tools; virtually no tool wear.
What it does: Removes material without mechanical contact; burr-free complex cavities.Applications: Turbine blades, medical implants, superalloys.Pros: No cutting forces, burr-free, great for hard alloys.Cons: Electrolyte handling; overcut control; environmental care. AI Assist: Signals: current density, flow/pressure, temperature, pH.Actions: gap control, flow/temperature setpoints.Typical results: tighter tolerances, higher repeatability, reduced scrap.
27) Laser Cutting High-precision cutting of sheet metal, plates, and profiles using CO₂ or fiber lasers. Ideal for 2D parts with complex geometries.
What it does: Cuts through metal sheets (steel, stainless, aluminum, titanium) up to 25mm thick with focused laser beam.Applications: Sheet metal parts, brackets, enclosures, panels, gaskets, prototypes, custom profiles.Pros: High precision (±0.1mm), fast cutting speed, no tool wear, complex 2D shapes, minimal material waste.Cons: Limited to 2D parts, heat-affected zone (HAZ), edge quality depends on parameters, reflective materials need care.Materials: Carbon steel, stainless steel, aluminum, titanium, brass, copper (with fiber laser).Typical tolerance: ±0.1–0.2mmSurface finish: Ra 3.2–6.3 µm (cut edge)Thickness range: 0.5–25mm (depends on material and laser power) AI Assist: Signals: laser power, cutting speed, gas pressure, temperature sensors, vision systems.Actions: parameter optimization, nesting efficiency, quality prediction, adaptive power control.Typical results: faster cutting cycles, reduced scrap, consistent edge quality, minimal dross formation.
28) Laser Micromachining Ultra-precise ablation or melting with tightly focused beams (often ps/fs lasers).
What it does: Produces micro-holes, trenches, and texturing with minimal HAZ.Applications: Medical devices, microfluidics, electronics.Pros: Non-contact, high precision, complex micro-features.Cons: Thermal effects if mis-tuned; optics cleanliness; reflective materials need care. AI Assist: Signals: camera/pyrometer, back-reflection, plume intensity.Actions: power/scan optimisation, autofocus.Typical results: cleaner edges, repeatable dimensions, less rework.
29) Waterjet Cutting (AWJ - Abrasive Waterjet) “Cold” cutting with high-pressure water + abrasive; no heat-affected zone.
What it does: Cuts metals, composites, stone; good for heat-sensitive parts.Applications: Aerospace panels, composites, custom profiles.Pros: No HAZ, minimal distortion, material-agnostic.Cons: Taper/lag to compensate; abrasive handling cost. AI Assist: Signals: pressure/flow, traverse speed, cut quality camera.Actions: dynamic speed/path compensation.Typical results: reduced taper, faster cutting, cleaner edges.
30) Ultrasonic Machining High-frequency vibration plus abrasive slurry for brittle materials.
What it does: Micro-chipping/erosion enables holes and shapes in glass/ceramics.Applications: Optics, ceramics, medical devices.Pros: Low forces, minimal cracks, tight features.Cons: Slurry handling; slower than milling; tool wear on sonotrodes. AI Assist: Signals: acoustic response, spindle/axis load, vision QC.Actions: amplitude/frequency setpoints, dwell control.Typical results: fewer defects, steadier throughput, longer tool life.
31) Electron Beam Machining (EBM) High-energy electron beam removes material through melting and vaporization in vacuum environment. For ultra-precision micro-holes.
What it does: Focused electron beam (accelerated electrons) melts/vaporizes material to create micro-holes, slots, and patterns.Applications: Micro-holes in turbine blades (cooling), fuel injector nozzles, aerospace components, medical devices, semiconductor processing.Pros: Extremely small features (down to 0.025mm), no tool wear, very hard materials, precise depth control, minimal HAZ.Cons: Requires vacuum chamber, slow process, high equipment cost, limited to small features, conductive materials only.Materials: Titanium, Inconel, stainless steel, tungsten, molybdenum, ceramics (conductive).Typical hole size: 0.025–1mm diameterDepth-to-diameter ratio: Up to 100:1 Critical for: Aerospace turbine blade cooling holes (thousands of micro-holes per blade), fuel injector nozzles (precision spray pattern).
32) Cryogenic Machining Liquid nitrogen/CO₂ cooling to reduce heat and wear in difficult alloys.
What it does: Directs cryo jets to the shear zone to stabilise chip formation and hardness.Applications: Ti, Inconel, hardened steels.Pros: Lower wear, better surface, greener than heavy flood.Cons: Nozzle integration; condensation/frost management. AI Assist: Signals: load/temperature, flow/pressure, finish sensors.Actions: flow rate, nozzle angle, feed caps.Typical results: longer life in Ti/Ni, consistent Ra, fewer thermal cracks.
33) Plasma Cutting High-temperature ionized gas (plasma arc) cuts through electrically conductive materials. Ideal for thick steel plates.
What it does: Plasma torch (30,000°C) melts and blows away material. Cuts thick metal plates faster than laser or waterjet.Applications: Structural steel fabrication, shipbuilding, heavy equipment, construction, thick plate cutting (up to 150mm).Pros: Very fast for thick materials, lower cost than laser, cuts all conductive metals, portable equipment available.Cons: Large heat-affected zone (HAZ), rough edge quality, limited precision (±1–2mm), dross formation, noise and fumes.Materials: Steel, stainless steel, aluminum, copper, brass (any conductive metal).Typical tolerance: ±1–2mmThickness range: 3–150mm (optimal for 6–50mm)Surface finish: Ra 12–25 µm (rough) Best for: Thick steel plates where speed is more important than precision. Complement to laser cutting (thin) and waterjet (non-metals).
34) Additive–Subtractive (Overview) Combines building a near-net shape with machining to final tolerance/finish.
What it does: Alternates deposition and cutting to achieve complex geometry efficiently.Applications: Repair, conformal channels, topology-optimised parts.Pros: Fewer setups, material savings, geometry freedom.Cons: Process orchestration complexity; heat management. AI Assist: Signals: melt pool/temperature, distortion sensors, loads.Actions: interleave timing, path tweaks, in-situ inspection triggers.Typical results: fewer rework passes, predictable accuracy, shorter lead time.
4) Hybrid & Innovations (2025) 35) Hybrid DED + 5-Axis Metal deposition and 5-axis machining in one platform for build-and-finish.
What it does: Deposits near-net features, then machines to tolerance/finish without part transfer.Applications: Repair, ribs/gussets, conformal cooling, multi-material features.Pros: Fewer setups, geometry freedom, integrated QA.Cons: Heat/distortion; process coordination and calibration. AI Assist: Signals: pool camera/pyrometry, axis loads, in-situ metrology.Actions: DED power/scan, machining feeds, interleave timing.Typical results: dimensional stability, reduced rework, better surface.
36) HSM — Trochoidal Milling Constant-engagement toolpaths that keep chip thickness thin and heat manageable.
What it does: Curvilinear paths limit radial engagement; allows higher speeds in hard alloys.Applications: Pockets/slots in Ti/Inconel, hardened steels.Pros: Higher MRR with less tool stress; better tool life.Cons: CAM complexity; needs accurate machine dynamics. AI Assist: Signals: vibration map, spindle/axis loads, path curvature.Actions: adaptive feed/step-over; CAM hint loop.Typical results: faster cycles, fewer tool failures, consistent finish.
37) AI-Augmented Machining Predictive models assist decisions on feeds/speeds, tool wear, and anomaly detection.
What it does: Fuses sensor data to predict issues and recommend corrective actions.Applications: Any CNC process; best ROI on hard-to-machine alloys and long cycles.Pros: Fewer surprises, better consistency, learning across jobs.Cons: Data readiness, integration with legacy controls, model drift. AI Assist: Signals: vibration, loads, temperature, finish metrics.Actions: overrides, alerts, CAM feedback.Typical results: reduced scrap, higher uptime, stable Ra.
38) Digital Twin Machining Real-time virtual model of machine/process for planning, monitoring, and training.
What it does: Simulates and validates toolpaths, detects collisions, estimates forces/deflection.Applications: High-value parts, first-off runs, 5-axis, hybrid lines.Pros: Higher first-time-right, faster commissioning, safer changes.Cons: Data/compute needs; model maintenance. AI Assist: Signals: encoder data, loads, metrology feedback.Actions: parameter identification, override advice.Typical results: tighter prediction, fewer crashes, faster sign-off.

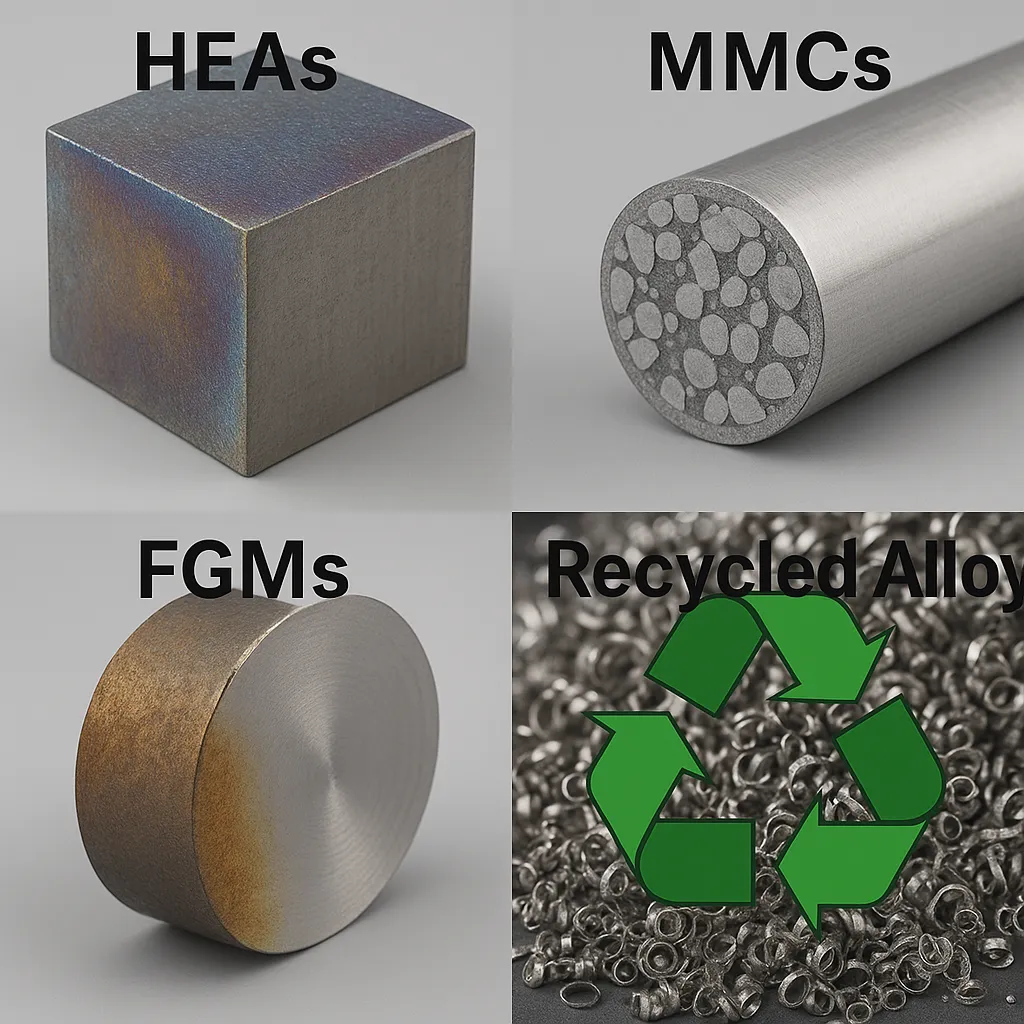

39) Smart / Advanced Materials (Mention) HEAs, MMCs, FGMs, and self-sensing layers introduce new machinability challenges.
What it does: Expands performance envelope with ultra-hard or graded properties.Applications: Aerospace, energy, medical, EV.Pros: Strength/weight gains, multifunctionality.Cons: Tool wear unpredictability; need for adaptive strategies. AI Assist:
Material-aware models select cutting conditions and cooling strategies per alloy/grade in real time.
See also: full guidance in Advanced Materials 2026 . 40) Micro-Fabrication & Medical/Aero Sub-100 µm tooling and special strategies for burr-free micro features.
What it does: Creates tiny channels/holes with micro-mills, EDM, laser.Applications: Stents, microfluidics, sensors.Pros: High precision at small scale.Cons: Tool fragility, metrology demands, thermal effects. AI Assist: Signals: high-speed vision, nano-vibration, load.Actions: micro-feed/step-over, pause/dwell strategies.Typical results: fewer burrs, higher yield, repeatable dimensions.
6) Future Machining & 2026 Trends
Machining is evolving beyond toolpaths and tolerances. Artificial intelligence, digital twins, hybrid machines, and sustainable materials are changing how engineers and students will design, simulate, and manufacture parts in the years ahead.
AI-Native Machining & Self-Optimising Tools What it does: Embedded AI inside CNC controllers learns from vibration, temperature, and current signals to automatically adapt feed, speed, and toolpath in real time. Already used by Okuma (OSP-AI), Siemens (Sinumerik One Edge AI), and Mazak (SmoothAi).Applications: Milling, turning, and drilling of metals where live correction improves tool life and finish quality. Used in aerospace, automotive, and precision moldmaking.Pros: Real-time adaptation, up to 15–25% faster cycles, improved consistency, fewer tool breaks.Cons: Requires reliable sensors, controller integration, model retraining (to prevent drift), and operator trust. Digital Twin & Industrial Metaverse What it does: Creates virtual twins of machines and processes for simulation, training, and maintenance. Implemented by Siemens , Dassault Systèmes , Hexagon , and PTC , often linked with NVIDIA Omniverse for VR/AR visualisation.Applications: Setup validation, operator training, collision checking, and maintenance planning in factories and universities.Pros: Safer prototyping, reduced downtime, improved operator training, fewer crashes.Cons: High compute cost, cybersecurity risk, and data synchronisation challenges. Next-Gen Hybrid Machines & Materials What it does: Combines additive, subtractive, and inspection steps in a single platform. Already used by DMG MORI (Lasertec 65 Hybrid), Mazak (INTEGREX i-AM), and Matsuura (Lumex Avance).Applications: Complex aerospace and medical components, repair of worn parts, and multi-material manufacturing (e.g., Ti + Cu, Ni + Al).Pros: Geometry freedom, fewer setups, integrated quality control, material efficiency.Cons: Process synchronisation, heat management, and risk of cross-material contamination. Sustainable / Green Machining What it does: Focuses on lowering energy use and environmental impact through MQL (minimum quantity lubrication), biodegradable coolants, and recycled alloys. Promoted by DMG MORI and GROB under ISO 14955 standards.Applications: CNC milling, turning, and drilling of aluminum and steel parts where sustainability and cost-efficiency are critical.Pros: Lower energy cost, cleaner workspaces, compliance with green manufacturing goals.Cons: Coolant performance variation, higher initial cost, and slower adoption across small workshops.
Emerging Machining Operations (2026+) Neuromorphic Manufacturing: Brain-inspired ultra-low-latency control loops — studied by ETH Zürich and Fraunhofer ILT .Cryogenic Hybrid Turning: LN₂ micro-cooling for Ti/Ni alloys — already tested by Sandvik , Seco , and 5ME .Laser-Assisted Ultrasonic Machining: Combines laser heating and ultrasonic vibration — under research at Tokyo University and TU Delft .Micro-EDM with AI Pulse Shaping: Adaptive spark control for sub-10 µm precision — implemented by Sodick and Makino . AI Assist & Outlook: Signals: spindle power, vibration harmonics, coolant flow, energy usage.Actions: adaptive feed/speed, chatter suppression, predictive maintenance scheduling.Typical results: 15–25 % efficiency gain, lower scrap rate, safer and greener production environments.
